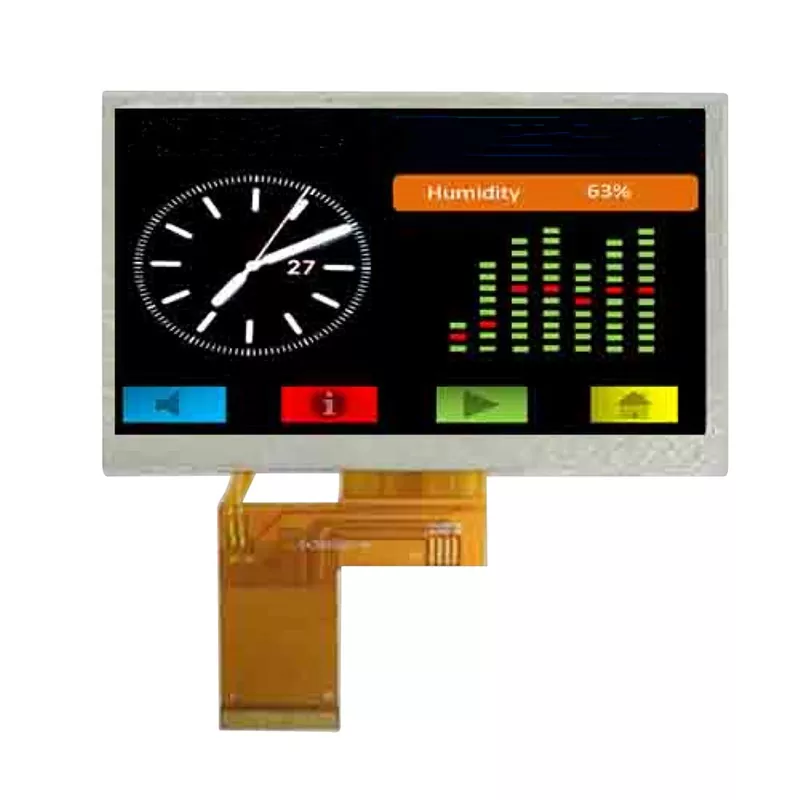

Modul TFT suhu 4.3 inci lebar

TFT Module can be found everywhere in life, what makes the Victronix 4.3 inch Wide Temperature TFT Module different from other manufacturers? At first, its 1000 cd/m² brightness, 1000:1 contrast ratio, and 50% NTSC color gamut ensure clarity in diverse lighting. Secondly, it not only has a parallel RGB888 interface with SYNC/DE modes, driven by the ST7283-G4 controller (3.3V logic) but also has a 16-LED array (8×2) with 20,000-50,000hour lifespan (50% brightness retention) ensuring that it can be used for long-lasting in different industrial situations. Besides, it passes rigorous environmental tests (thermal shock, humidity, ESD ±2kV) so that can operate in extreme temperatures (-30°C to +80°C).

This Victronix 4.3 inch TFT Module is suitable for industrial controls, medical devices, portable instruments, and embedded systems requiring a durable, sunlight-readable display.

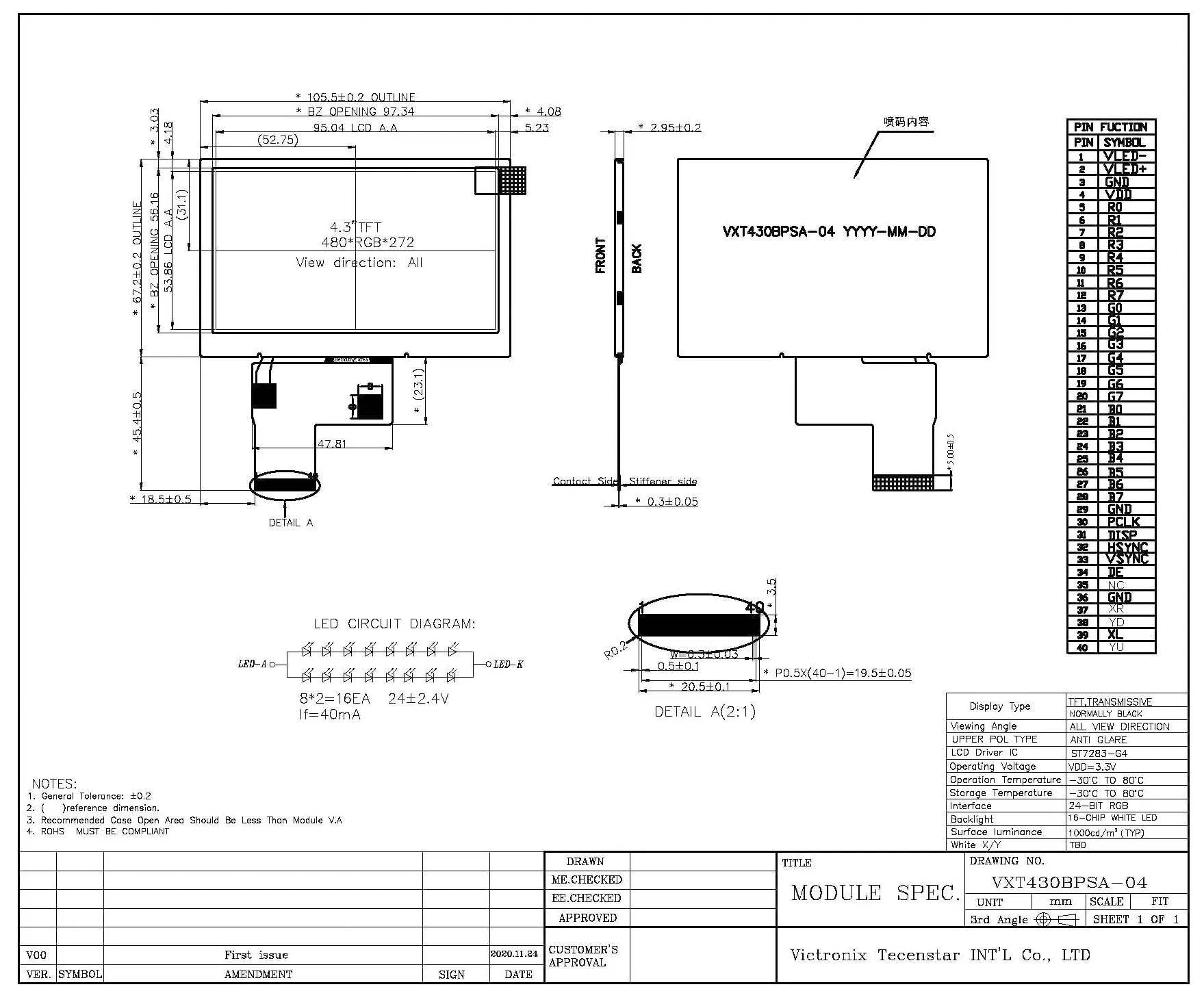

Durable 4.3" 480x272 TFT LCD

1. Model：VXT430BPSA-04

2. Resolution (pixel)：480*272(WQVGA)

3. Active Area(mm)：95.04*53.86

4. Outline Dimension (mm)：105.50*67.20*2.95

5. Viewing Angle (R/L/U/L)：ALL

6. Brightness (cd/m)：1000

7. Contrast Ratio：500

8. Driver IC：ST7283-G4

9. Electrical  Interface：24bits RGB

10. Pin No.：40pins

11. Logic Voltage：3.3v

Specification
